Using Grunt with Pattern Lab

Grunt is a powerful Javascript task runner that can make your web design workflow much more efficient by automating a slew of tedious tasks. Pattern Lab is a tool created by Dave Olsen and myself to help you efficiently create robust interface design systems. I’m super happy with how Pattern Lab and Grunt work together to make my design and development process so efficient.

Step 1: Set Up Pattern Lab

The first thing you’ll need to do is install Pattern Lab and run it for the first time. When you get Pattern Lab up and running, your directories should look like this:

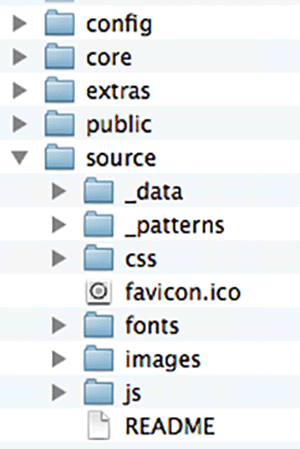

Pattern Lab directory structure

Pattern Lab is essentially a static-site generator with a PHP engine that compiles files from the /source directory to the /public directory to create the Pattern Lab interface. You can use different commands to fine tune what you want Pattern Lab to compile over to /public. More on this in a bit.

Step 2: Set up Grunt

If you’ve never used Grunt before, I highly recommend checking out this wonderful article by Chris Coyier to get you started.

You’ll want to set up Grunt at the root of your Pattern Lab project. Once you do that, your directory structure should look something like this:

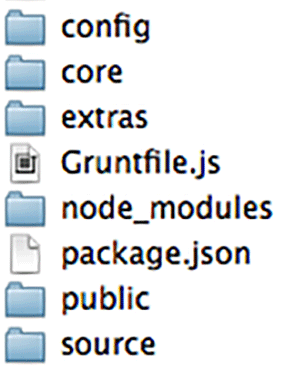

Pattern Lab and Grunt directory structure

Step 3: Configure Grunt to run Pattern Lab

Once Grunt is installed in the right place, you’ll want to crack open the file called Gruntfile.js. This file is where you define all the tasks you want Grunt to take care of. We want to tell Grunt to compile Pattern Lab when certain types of files are changed. Here’s what that looks like:


module.exports = function(grunt) {

  // Configuration
  grunt.initConfig({
    pkg: grunt.file.readJSON('package.json'),
      shell: {
        patternlab: {
          command: "php core/builder.php -gp"
      }
    },
    watch: {
      html: {
        files: ['source/_patterns/**/*.mustache', 'source/**/*.json'],
        tasks: ['shell:patternlab'],
        options: {
          spawn: false
        }
      }
    }
  });

  // Plugins
  grunt.loadNpmTasks('grunt-contrib-watch');
  grunt.loadNpmTasks('grunt-shell');

  // Tasks
  grunt.registerTask('default', ['watch', 'shell:patternlab']);
};

You can also view this code on Github

There’s a few things going on here. First, is that we’re including a couple Grunt plugins. One is grunt-watch, which watches for changes to files. The second plugin is grunt-shell, which can run any command from within Grunt.

What the watch section of the Gruntfile is saying is “Okay, whenever any changes are made to a .mustache or .json file in the /source directory, compile Pattern Lab with this command: php core/builder.php -gp. This command only generates the patterns, not CSS, JS, images, or anything else. We’ll set up separate Grunt tasks to compile Sass files, concatenate and minify JS, optimize images, etc.

Step 4: Run Grunt

Once everything’s set up, in the command line you can now navigate to your project folder and type grunt. This will run the tasks in Grunt and start watching for changes. Whenever a change is made to a .mustache or .json file, grunt will generate Pattern Lab.

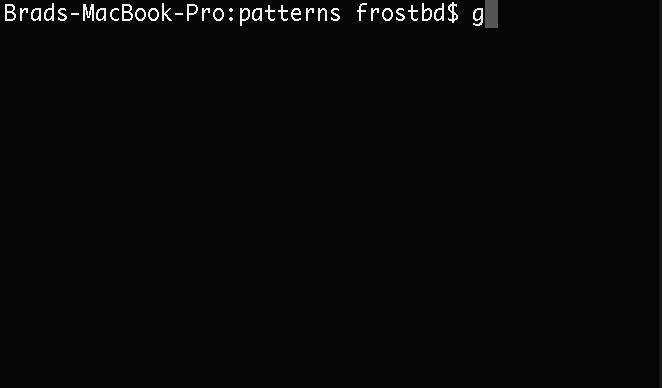

Grunt command line compiling Pattern Lab

Happy Grunting and Pattern Labbing!

I’ve been developing production-ready front end code with Pattern Lab for a year and a half, and can’t imagine designing and developing without it. I now include Grunt as a can’t-live-without development tool, and I’m super happy how well it works together with Pattern Lab. This workflow has definitely made me a lot more efficient as a developer, and hope you might find it useful as well. Enjoy!

10 Comments

  1. Wonderful! We’ve been using Pattern Lab for six months now, and were wishing for a better integration with our usual Front End stack which is JavaScript/Grunt based. Plus we wanted the ability to run some production/building tasks in order to use Pattern Lab as a development code base, and not only for the design stage. This is a huge step further in this direction.
    Thank you guys!

  2. Jess

    I am trying to run this from a custom local URL of patternlab.dev/ but nothing gets found or loaded. I have everything inside both the host and vhost files the same as my other local sites, which do work.

    I am pointing to the public folder but am not sure if that is correct.

    I eventually want to tie it all in through version management and off onto a server within our enterprise.

  3. I actually did something similar for our Patternlab (http://styles.simian.co/) but we’re using the Node version of Patternlab, which already has it’s own Gruntfile. We’ve expanded on it, if anyone wants to take a look:

    http://styles.simian.co/

    We’re currently compiling our SASS outside of Grunt because we wanted to have sourcemaps and we couldn’t manage to make them work from grunt.

  4. Jordy

    Hey Brad,

    Thanks for writing this up it was very helpful.

    Is there a way to also use the autoreload functionality with Grunt?

    • Yup! Basically you set up livereload in your Gruntfile and add the livereload script to the head of Pattern Lab. I have it working on several projects and it’s really helpful.

  5. Jordy

    Thanks Brad! I got it working

  6. Thanks for the article! Anyone interested in pulling a fork that has ALOT of grunt integration with PatternLab, we have built a version that has testing, building and optimization built in through grunt.

    https://github.com/shoptology/patternlab-php

  7. I find myself a little late to the party on this, but I am glad to see patternlab-php working so seamlessly within grunt! As others have stated it fits nicely into so many of our workflows now. The shoutout by Ivan for pl-node is sweet too!

  8. Great post Brad. I am little behind with Grunt. It looks like it could save me a lot of time.

Comments are closed for this post. If you've got something to add, feel free to reach out on Twitter.
